How Does a Hot Water Recirculating Pump Work?
Learn how hot water recirculation works, the main system and control types, how pump flow and head are sized, and what affects energy use.
A hot water recirculating pump moves heated water through a distribution loop and back to the hot water source. This keeps the main pipework near its target temperature, reducing wait times and water waste at outlets. Pump flow is typically based on system heat loss and allowable temperature drop, while pump head is based on pressure loss around the circulation circuit.
This guide covers how they work, the main types, how to size them, and what to consider when selecting one.
How Hot Water Recirculation Works
A hot water recirculating pump moves water that has cooled in the distribution pipe back towards the hot water source. This creates a circulation loop that keeps heated water closer to outlets, reducing the volume of water discharged while users wait for hot water.
In systems with a dedicated return pipe, water travels back to the hot water source through a separate return line. Some retrofit systems instead use the cold water pipe as a temporary return path. The pump may operate continuously or according to demand, time or temperature controls.
Hot Water Recirculation System Components
A typical hot water recirculation system consists of several key components. The pump provides the circulation required to move water through the return loop.
A check valve ensures water flows in the correct direction, preventing backflow. Additionally, advanced systems may feature timers, thermostats, and sensors to control the pump’s operation and enhance efficiency. These components work together to control circulation, maintain the required system conditions and prevent unwanted reverse flow.
Why Use a Hot Water Recirculating Pump?
Hot water recirculation can reduce the time users spend waiting for hot water, particularly in larger buildings or systems with long distribution pipe runs.
It can also reduce water waste by limiting the amount of cooled water discharged before hot water reaches an outlet. The scale of the benefit depends on the system layout, usage patterns and distance between the hot water source and outlets.
| Benefits | Considerations |
|---|---|
| Reduced waiting time | Additional pump energy |
| Reduced water waste | Distribution heat loss |
| Better temperature availability | Additional pipework may be required |
| Useful for larger distribution systems | Requires correct sizing and balancing |
| Flexible control options | Continuous operation may increase energy use |
Hot Water Recirculation System Types and Controls
Types of Hot Water Recirculation Systems
The right system configuration depends on the existing pipework, building requirements and whether a dedicated return pipe is available. The two main configurations are shown below.
| System | How it works |
|---|---|
| Dedicated return | A separate return pipe carries cooled water from the circulation loop back to the hot water source |
| Crossover / retrofit | The existing cold-water pipe temporarily provides the return path, avoiding a dedicated return pipe |
Hot Water Recirculation Control Strategies
The right control strategy depends on the building’s usage patterns, system requirements and energy-use objectives. The table below compares the main options.
| Control Strategy | How it works | Best for | Key consideration |
|---|---|---|---|
| Demand-Controlled | Operates when hot water is requested, using demand-based control such as flow detection, sensors or manual activation | Variable or unpredictable usage patterns; energy-sensitive projects | Can reduce pump runtime and distribution heat loss by operating only when hot water is required |
| Timer-Controlled | Runs on a programmed schedule during peak usage windows | Buildings with consistent, predictable usage patterns | May operate unnecessarily if usage patterns do not match the programmed schedule |
| Temperature-Controlled (Thermostatic) | Activates when water temperature drops below a set threshold; maintains a minimum delivery temperature | Systems where maintaining a target return water temperature is important | Helps maintain the required return water temperature; applicable temperature requirements depend on the system and local standards |
| Combination (Timer + Thermostat) | Operates on a schedule but also responds to temperature drop within those windows | Mixed-use buildings where both compliance and efficiency are priorities | Can combine scheduled operation with temperature control; suitability depends on the building and system requirements |
Demand-Controlled Recirculating Pumps
Demand-controlled pumps operate when hot water is requested. Activation can be triggered by flow detection, occupancy sensors, manual controls or other control logic. Because circulation occurs only when required, demand control can reduce unnecessary pump operation and distribution heat loss.
Timer-Controlled Recirculating Pumps
Timer-controlled recirculating pumps run on a set schedule, turning on and off at predetermined times. This is ideal for buildings with predictable hot water usage patterns, such as in the morning and evening. By limiting circulation to defined periods, timer control can reduce unnecessary pump operation and distribution heat loss compared with continuous circulation.
Temperature-Controlled Recirculating Pumps
Temperature-controlled pumps respond to the temperature within the circulation loop. When the monitored temperature falls below a defined setpoint, the pump operates to restore the required circulation temperature. This approach is useful where maintaining a target return water temperature is important.
Combination Timer and Thermostat Control
Combination control uses both scheduled operation and temperature sensing. The pump runs during defined time periods but can also respond when the return water temperature falls below the selected setpoint. This can provide a useful balance between temperature control and reduced pump runtime where usage patterns are reasonably predictable.
Where Should a Hot Water Recirculating Pump Be Installed?
A hot water recirculating pump is typically installed on the return pipe close to the hot water source. From this position, the pump circulates water through the distribution system and returns it for reheating, helping maintain the required temperature throughout the loop.
The exact installation arrangement depends on the system design and pump manufacturer requirements. A check valve is commonly installed to prevent reverse flow, while isolation valves allow the pump to be serviced without draining the entire system. Larger or branched systems may also require balancing valves to distribute circulation flow correctly between different parts of the pipe network.
For high-rise buildings, the design also needs to account for static pressure, PRVs and pressure zoning. See our guide to hot water recirculation design for high-rise buildings.
When selecting the pump location, designers should also consider accessibility for maintenance, the position of temperature sensors or controls, and compatibility with the system water and operating temperatures. The final arrangement should follow the pump manufacturer’s installation guidance and any applicable local plumbing or water safety requirements.
Water Savings, Heat Loss and Energy Use
Hot water recirculation can reduce water waste because users no longer need to discharge as much cooled water while waiting for hot water to reach an outlet.
The effect on energy use is more complex. Keeping water circulating through hot pipework creates ongoing distribution heat loss, while the pump itself also consumes energy. Continuous circulation can increase energy use because the pump consumes electricity and the hot water pipework continues to lose heat. ENERGY STAR notes that continuously operated recirculation systems can use more energy than they save.
Troubleshooting and Maintenance
Common Hot Water Recirculation Problems
Hot water recirculation problems are often caused by insufficient flow, poor balancing, incorrect controls or excessive heat loss. The table below highlights some common symptoms and areas to investigate.
| Problem | Possible cause | What to check |
|---|---|---|
| Hot water takes too long to arrive | Insufficient circulation | Pump operation, flow rate, balancing |
| Return temperature is too low | Excess heat loss or insufficient flow | Insulation, return flow, system balance |
| Pump is noisy | Air, excessive velocity or pump issue | Venting, system flow, pump condition |
| Some branches remain cool | Poor balancing | Balancing valve settings |
| Pump runs too often | Incorrect control settings | Timer, temperature setpoint or demand control |
| Unexpected energy use | Excessive circulation | Operating schedule, controls and insulation |
Routine checks should also follow the pump manufacturer’s servicing guidance and any applicable water management requirements.
Hot Water Recirculation Temperature Requirements
Hot water storage, circulation and outlet temperature requirements vary between jurisdictions, building types and water management regimes. Designers should therefore follow the standards and regulations applicable to each project rather than relying on one universal temperature.
For example, CDC guidance in the United States recommends maintaining circulating hot water at no less than 49°C / 120°F as part of Legionella control measures. In the United Kingdom, HSE guidance uses different temperature requirements, including storing hot water at 60°C / 140°F or higher and distributing it so it reaches at least 50°C / 122°F at outlets within one minute in applicable systems.
How to Size a Hot Water Recirculating Pump
A hot water recirculating pump is sized using two main values: the required circulation flow rate and the pressure loss through the index circuit. The required circulation flow rate is based on the heat loss from the hot water distribution pipework and the permitted flow to return temperature difference. The required pump head is then determined from the pressure losses around the circulation loop.
1. Calculate the System Heat Loss
First, calculate how much heat the hot water distribution system loses through its pipework. This determines how much heated water needs to circulate to maintain the required return temperature.
Pipework heat loss can be affected by:
- Pipe length and diameter
- Water temperature
- Ambient temperature
- Insulation type and thickness
- Air movement around the pipework
Heat loss should be calculated across the relevant hot water distribution pipework rather than estimated from the overall size of the building.
2. Determine the Recirculation Flow Rate
Once the total system heat loss is known, it can be converted into the circulation flow rate required to maintain the selected temperature difference, or ΔT, between the flow and return.
The calculation is:
Mass Flow Rate = System Heat Loss ÷ (Specific Heat Capacity × ΔT)
For example, if a system loses 5 kW of heat and is designed with a 5°C temperature difference:
5 kW ÷ (4.185 kJ/kg·K × 5°C) = 0.239 kg/s
Because the density of water is approximately 1 kg/L under typical system conditions, this is approximately 0.239 L/s.
In US customary units, 5 kW is approximately 17,061 BTU/hr and a 5°C temperature difference is equivalent to 9°F. Using a specific heat capacity of approximately 1 BTU/lb·°F:
17,061 BTU/hr ÷ (1 BTU/lb·°F × 9°F) = 1,896 lb/hr
This is approximately 3.79 US gpm.
A smaller permitted temperature difference generally requires a higher circulation flow rate because the water must move around the system more quickly to limit temperature loss.
3. Calculate the Required Pump Head
The pump must also provide enough pressure to overcome the resistance created by the circulation system at the calculated flow rate.
Pressure losses can occur through:
- Pipes
- Fittings
- Check valves
- Balancing valves
- Other system components
The required pump head is based on the index circuit, which is the complete circulation route with the greatest pressure loss. Pressure losses from every separate circuit should not be added together.
Does Building Height Affect Recirculation Pump Head? In a closed recirculation loop, static elevation is generally not added to the required pump head. Water that rises within the system also descends as it completes the loop, so the pump primarily needs to overcome friction and component pressure losses.
4. Check the Pump Curve
Once the required flow rate and pump head have been calculated, together they form the pump duty.
The required duty point should be compared with the manufacturer’s pump curve to confirm that the selected pump can provide the necessary flow at the calculated head.
Pump sizing is only one part of the overall design process. For a broader look at system pressure, layout and other design considerations, see our guide to designing a hot water system.
Selecting a pump that cannot reach the required duty point may result in inadequate circulation and excessive temperature drop. Oversizing should also be avoided, as unnecessarily high flow can increase velocity, pressure loss and pump energy use.
For a more detailed calculation process, see our complete guide to sizing recirculation pumps.
How to Calculate Hot Water Recirculation Systems in h2x
The manual sizing process requires calculations for heat loss, circulation flow, pipe sizing and pressure loss. h2x performs these calculations from the system layout and project design parameters. h2x’s current recirculation workflow includes:
| h2x calculation/output | |
|---|---|
| Return system duty flow | ✓ |
| Return system pressure loss | ✓ |
| Return system heat loss | ✓ |
| Balancing valve Kv | ✓ |
| Pipe return flow | ✓ |
| Pipe diameter | ✓ |
| Pipe velocity | ✓ |
| Dead leg results | ✓ |

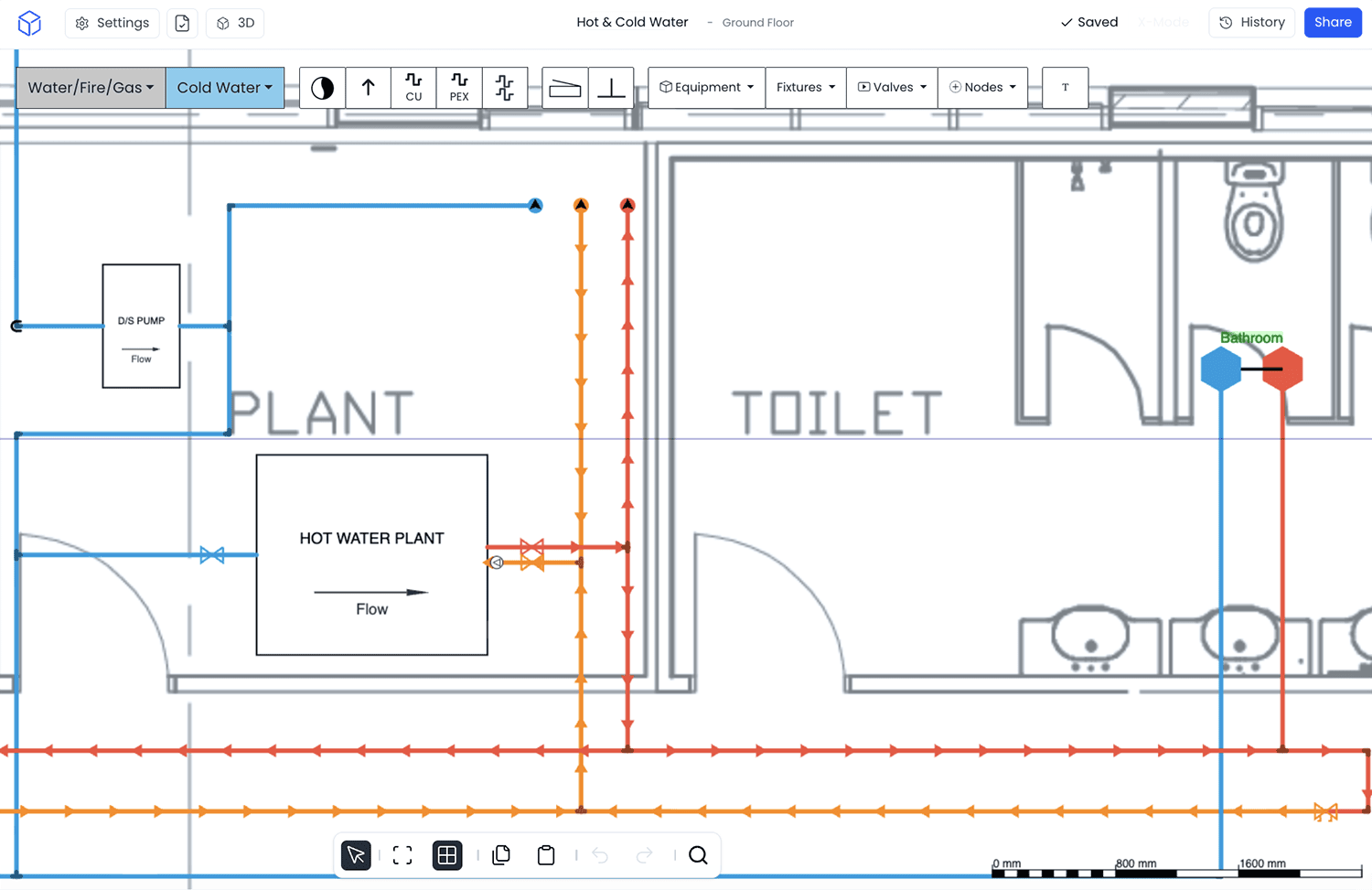

Simply sketch the pipe layout, add balancing valves, and use the auto-connect feature for fixtures. With one click, h2x combines your layout with project settings for accurate pipe sizing, flow rate calculations, and pump duties.
View results in the software or export them as a spreadsheet. You can also export your drawing to PDF, AutoCAD, or Revit files.
Check out the video below to see how it works. For more details, read a case study here showcasing real-world results matched exactly with the h2x calculations.
Are Hot Water Recirculating Pumps Worth It?
Hot water recirculation is most useful where long distribution pipe runs create unacceptable waiting times or water waste. However, continuous circulation can increase pipework heat loss, so correct sizing, insulation and controls are important. For larger buildings, the decision should be based on required delivery temperatures, system layout, usage patterns and applicable design standards.
Design domestic water systems faster in h2x
Automate flow rate calculations, pipe sizing and pressure balancing while creating your domestic water system layout in one connected workflow.
Frequently Asked Questions
How Does a Hot Water Recirculating Pump Work?
A hot water recirculating pump moves water around a circulation loop and back towards the hot water source. This keeps heated water closer to outlets, reducing waiting times and the amount of cooled water discharged before hot water arrives.
How Do You Size a Hot Water Recirculating Pump?
A hot water recirculating pump is sized using the required circulation flow rate and pump head. Flow is determined from system heat loss and the permitted flow to return temperature difference, while pump head is based on pressure losses through the index circuit.
Does Building Height Affect Hot Water Recirculation Pump Head?
Generally, static building height is not added to pump head in a closed recirculation loop. Elevation gains and losses balance around the complete circuit, so the pump primarily needs to overcome friction and component pressure losses.
How Do You Calculate Hot Water Recirculation Flow Rate?
The required circulation flow can be calculated from the system heat loss, the specific heat capacity of water and the selected temperature difference between flow and return. A smaller permitted temperature difference generally requires a higher circulation flow rate.
Does a Hot Water Recirculating Pump Run Continuously?
Not necessarily. A recirculating pump may run continuously or use demand, timer, temperature or combined controls. The most appropriate control strategy depends on the building, usage pattern and system requirements.
Do Hot Water Recirculating Pumps Save Water?
Hot water recirculation can reduce water waste by decreasing the amount of cooled water discharged while users wait for hot water to reach an outlet. The potential saving depends on the distribution layout, pipe lengths and usage patterns.
Can You Turn Off a Hot Water Recirculating Pump?
Yes, in many systems the recirculating pump can be turned off or controlled using a timer, temperature control or demand-based strategy. However, whether it should be turned off depends on the building, system requirements and any applicable hot water temperature or water-management requirements.
Do Hot Water Recirculating Pumps Save Energy?
Not necessarily. Recirculation reduces water waste, but keeping hot water moving through the pipework can increase distribution heat loss and also requires pump energy. Effective pipe insulation and demand, timer or temperature controls can help reduce unnecessary energy use compared with continuous circulation.
Can a Hot Water Recirculating Pump Work With a Tankless or Instantaneous Water Heater?
Often, yes. However, compatibility depends on the tankless or instantaneous water heater, recirculating pump and control arrangement. Designers should check the manufacturer’s requirements, including any minimum flow conditions, before specifying the recirculation system.
