System Sizing Report
h2x allows you to export a detailed, accurate system sizing report, which gives you full visibility of your design and helps support QA and client confidence.
Why Use h2x To Generate A System Sizing Report?
Manually compiling spreadsheets can be tedious, time-consuming, and difficult to review with a high risk of human error, especially on complex systems.
Meanwhile, h2x gives you a detailed system sizing report automatically, ready to support your QA and design review processes.

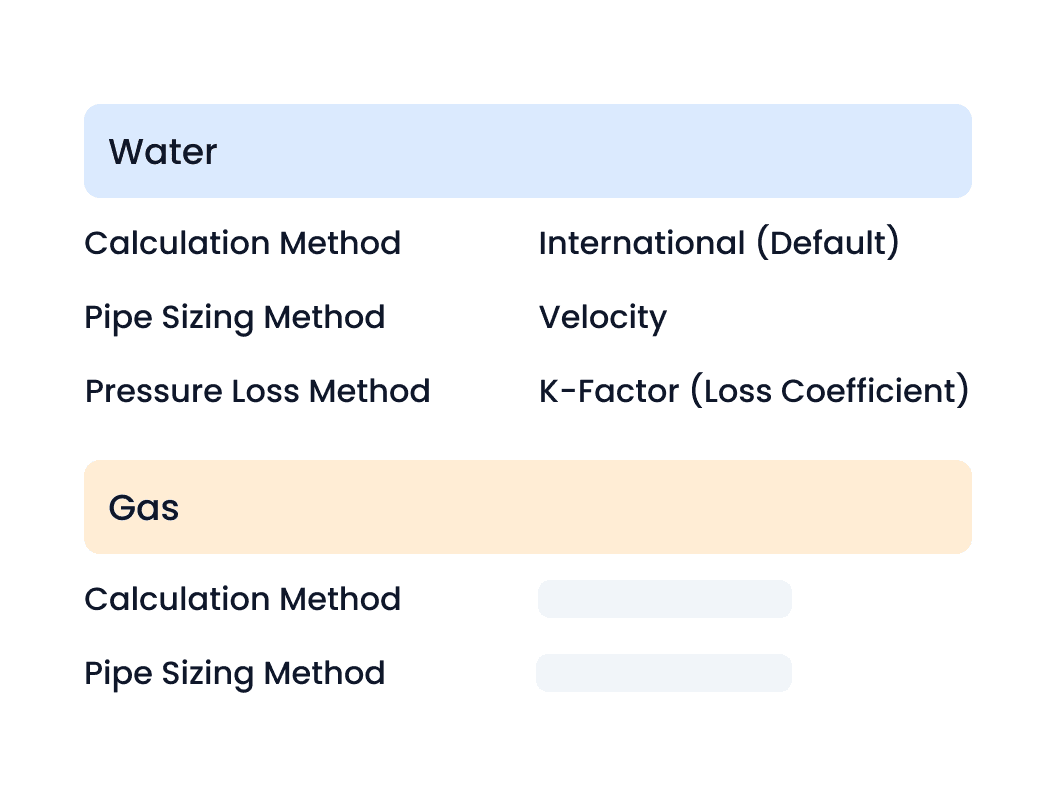

Complete System Breakdown
Export a full system sizing report for each system as soon as the design is complete. It includes every component of your design with calculated values like flow rate, velocity, pressure drop, and more.
Detailed Insights
Your report highlights the index run and gives sizing data for all key equipment. That includes valves, fittings, pumps, emitters, plant items, and more for a complete calculation overview.
QA and Submissions
Use the system sizing report as part of your QA documentation or design submission to provide complete transparency. It gives you confidence that everything is accurate and up to date, so when questions come in, you're ready with clear, verified information.
Improved Internal Reviews
Instead of comparing separate spreadsheets and markups, you can review the design and all calculations in one central place. This makes it easier to spot missing rooms or components during review, giving you full visibility and reducing the chance of oversight.
